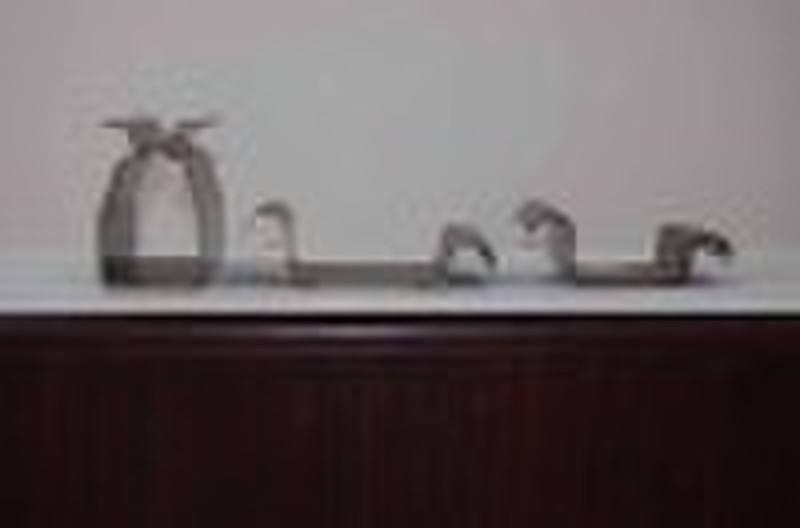

column former

GY200forming machineTo produce: upright post Process of production Strip steel loading---leveling------material feeding----punching---roll forming ----hydraulic cutting ------products unloading Equipments and parameters 1. hydraulic expansion de-coiler 1 set Max loading weight: 6 T Hydraulic station 1 set, motor 5.5kw 2. leveler 1 set Effective width of leveling is 400mm Max leveling speed is 18m/min Motor power: three phrase motor 5.5KW matches with Fuji frequency converter Material of roller: Gcr15 bearing steel, HRC 60 3. Servo motor feeder 1 set Effective width is 400mm Allowed Material thickness is 0.5-4.5mm Feeding speed ≤20m/min , 85 times/ min Feeding precision : ±0.15mm Feeding distance ≤9999.99mm 4. JH 21-110T fixed forcing press Slide stroke: 180mm, working speed: 50 times / min Motor power: 7.5kw 5. Hydraulic forming machine 1 set ( 18 channels) Each channel of forming machine is made up of power distributor gearbox, universal transmission shaft and Frame horizontal stand.Inlet point matches with guide device 1 set, and outlet point matches with universal adjusting device 1 set. 6. motor for frequency converter 55KW matches with reducer JZQ650 7. Hydraulic cutting machine Motor power: 7.5kw. Working pressure: 8 Mpa Cutting speed: 6-8times / min Magnetic valve adopts TAIWAN brand 8. Run-out table Roller style Run out table 1 set (length is 8 m) 9. linkage operation cabinet It is controlled by PLC. Speed is adjusted by frequency converter. PLC touch screen adopts JAPENESE brand The length of work piece is controlled by coder 10. punch die has 3 pairs ( including cutting die 3 pairs) Material of punching die: Cr12 Mov, HRC62
