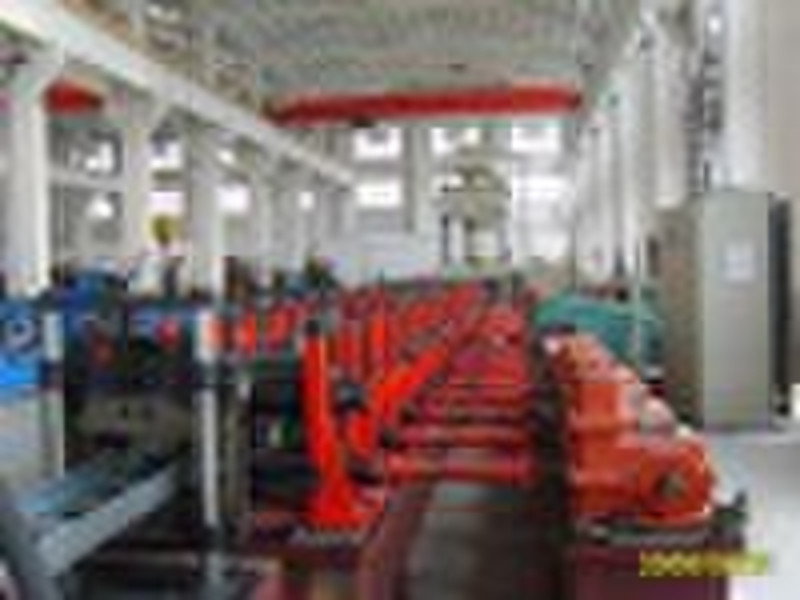

shelf roll forming machine

Rack Roll forming machine Process of production Strip steel loading ---roll forming ----hydraulic cutting ------products unloading Equipments and parameters 1. hydraulic expansion de-coiler 1 set Max loading weight: 6 T Hydraulic station 1 set, motor 5.5kw 2. Roll forming machine 1 set (frequency converter: 18.5KW) the body of roll forming machine is 1 set (13 channels) Every channel consists of power distributor box, universal shaft and portal frame Inlet point matches with guide device 1 group , discharge point matches with universal adjusting device 1 group 3. Hydraulic cutting machine 1 set (motor power 5.5kw) Working pressure: 8Mpa, cutting speed: 6-8 times /min Main hydraulic components adopt Taiwan brand products 4. Roller type Run-out table (length 3m) 1 set 5. PLC operation cabinet Touch screen adopts Japanese brand products Fixed length of Work piece is controlled by coder 6. Combined mold 1 group (produce four specifications) Material of mold is Gcr15 bearing steel, HRC 58-62 7. Material of cutting mold is Cr12 MOV, HRC60 (total 4 pairs)
